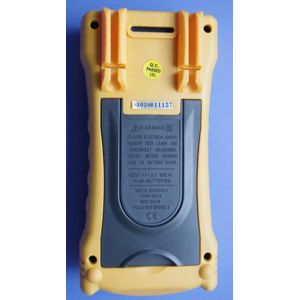

YHS-705 Process Loop Calibrator , Input / Output Voltage Signal And Current Signal
Quick Detail:
• LCD display with font height 22mm.
• Over range displays “1”.
• Power output 24V DC, which can serve as the working power of 2-wire instrument.
• 0-10V, 0-20mV, 0-100mV, 0-20mA and 0-22mA DC signal output scales are available, which can serve as the input and output signal of type II and type III
Description:
This loop calibrator is designed with output current, Simulate output current, output voltage function, it is used for detecting and debugging automatic control equipment in industry scene.
Features:
• LCD display with font height 22mm.
• Over range displays “1”.
• Power output 24V DC, which can serve as the working power of 2-wire instrument.
• 0-10V, 0-20mV, 0-100mV, 0-20mA and 0-22mA DC signal output scales are available, which can serve as the input and output signal of type II and type III
instruments and can simulate various of type II and type III instruments in field verification.
• 200V, 20V, 200mV, 100mA and 20mA DC signal measuring scales are available, which can be usd to measure the working voltage of the instrument and
the input/output voltage signal and current signal of the instrument.
• The instrument can working under condition of 24V power, output DC signal and measuring function simultaneously.
• The instrument has quadruple half digits LCD display, with the rotary switch, it can display the output value, measured value and unit
SPECIFICATIONS
|
DC Signal Measurement |
DC Signal Output |
||
|
Range |
Accuracy |
Range |
Accuracy |
|
0-200.00mV |
(0.05% of reading+3Counts) |
0-10.000V |
±(0.05% of reading +4 Counts) |
|
0-20.000V |
±(0.1% of reading +3Counts) |
0-100.00mV |
±(0.05% of reading +4 Counts) |
|
0-200.00V |
±(0.1% of reading +3 Counts) |
0-20.00mV |
±(0.05% of reading +4 Counts) |
|
0-22.000mA |
±(0.05% of reading +4 Counts) |
0-22.000mA |
±(0.05%v+4 Counts) |
|
0-200.00mA |
±(0.05% of reading +7 Counts) |
0-20.000mA |
±(0.05% of reading +4 Counts) |
